Williams IR/FW car-by-car histories

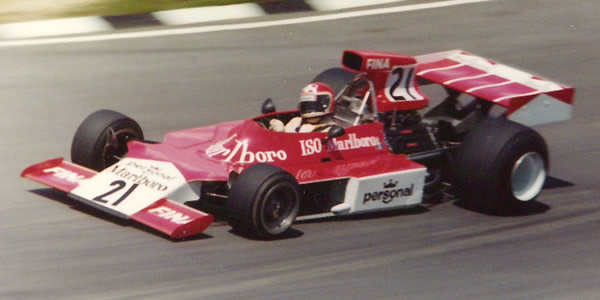

Tom Belso tried to qualify Frank Williams' Iso-Marlboro FW02 for the 1974 British GP. Copyright Richard Bunyan  2007. Used with permission.

Tom Belso tried to qualify Frank Williams' Iso-Marlboro FW02 for the 1974 British GP. Copyright Richard Bunyan 2007. Used with permission.

This model is eligible for the Grand Prix de Monaco Historique 2018, in Race F: Formula 1, 1973 to 1976, Cosworth DFV engine.

Frank Williams recruited ex-March designer John Clarke to produce a new series of cars for 1973. These were initially called Iso-Marlboro IR01 and IR02, but became Iso-Marlboro FW01 and FW02 in 1974, before being finally named as Williams for 1975.

The new Iso-Marlboro IR was built for the 1973 regulations, which required deformable structures along the sides of the cars. John Clarke's design followed the popular lower polar moment of inertia theory, so the fuel tanks were in the centre of the car, around the driver, the water radiators behind the front wheels, and the oil tank between the driver and engine. The monocoque was low and flat, with outboard spring/damper units all round. The first chassis was fabricated by Lynchford Products using NS4 aluminium in 18 gauge for the inner skins and the regulation 16 gauge outer skins. The Cosworth DFV and Hewland FG400 almost go without saying, and the rear wing support was initially an elegant monocoque item. Williams later brought in Gian-Paulo Dallara to change the rear suspension geometry, leading to Clarke leaving the team in a huff. Two myths are worth nailing: the IR01 bore no resemblance to the FX3; and Italian car maker Iso Rivolta were not involved in the car's construction.

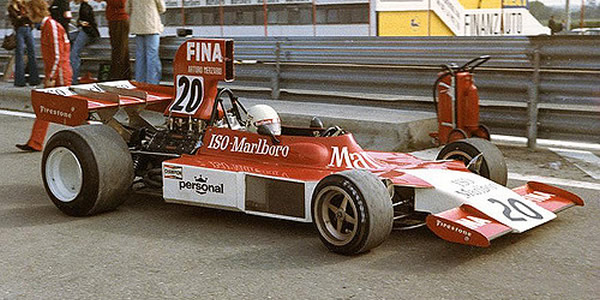

Howden Ganley continued as main driver, but his teammate's job was to bring a budget, and 'Nanni' Galli was replaced by a string of paying customers. The under-funded cars started at the back of the grid, but improved as the season went on, with Ganley placing his tenth on the grid at Monaco. Gijs van Lennep's sixth place at Zandvoort and Ganley's sixth in Canada were the only points scored. Art Merzario joined the team for 1974, with the cars now being called Iso-Marlboro FW01 and FW02. A new car FW03 appeared at the Spanish GP, and Merzario took a fine fourth place at Monza in that car. Jacques Laffite joined the team during the season to drive FW02, and these two drivers continued into 1975 in what were now called Williams FW02 and FW03. A new FW04 model was introduced, but FW03 continued through 1975 for hire drivers.

The two early cars were consumed in a series of accidents, with one of the tubs being used to rebuild FW03 after Ian Ashley crashed it at the Nurburgring in 1974.  FW03 survived and was sold to Loris Kessel who renamed it the Apollon 001, and attempted to qualify for the Italian GP in 1976 and 1977.  It was restored to 1975 specification by an Italian owner in 1991, and has raced in historic events since 2010.

Car
Total
Race
Starts
Grand
Prix
Starts
First Race
Present Location
12
12
Spanish Grand Prix
(29 Apr 1973)
Written off, Swedish GP (P) 1974
25
24
Spanish Grand Prix
(29 Apr 1973)
Used to rebuild FW03 1975
22
20
Spanish Grand Prix
(28 Apr 1974)
France 2016

Please contact Allen Brown (allen@oldracingcars.com) if you can add anything to our understanding of these cars.
